Op deze pagina vindt U een producten overzicht van IKEDA SOUND LABS. Al deze producten
worden met de grootste zorg onder toeziend oog van Isamu Ikeda (ex Miyabi, Cello, Fidelity
Research, Jeff Rowland) met de hand gebouwd om zo de best mogelijke kwaliteit te bieden!
Kleine opmerking om misverstanden te voorkomen: Ikeda geeft de output van haar elementen op
in mV gemeten bij 3,54mm/sec. De meeste fabrikanten echter doen dit bij 5 cm/sec.
Om hier een goed beeld bij te krijgen hebben wij de output zoals opgegeven door Ikeda
doorberekend naar 5cm/sec.
MOVING COIL CARTRIDGES:
IKEDA 9 TS MC CARTRIDGE: Output Voltage at 5cm/sec: 0.4 mV – Stylus Force: 2.0 grams – Frequency Response: 10Hz > 45kHz – Stylus: Oval-shaped solid Diamond – Cantilever: Double layered duralumin pipe – Weight: 10 grams – Compliance @ 10 Hz: 12

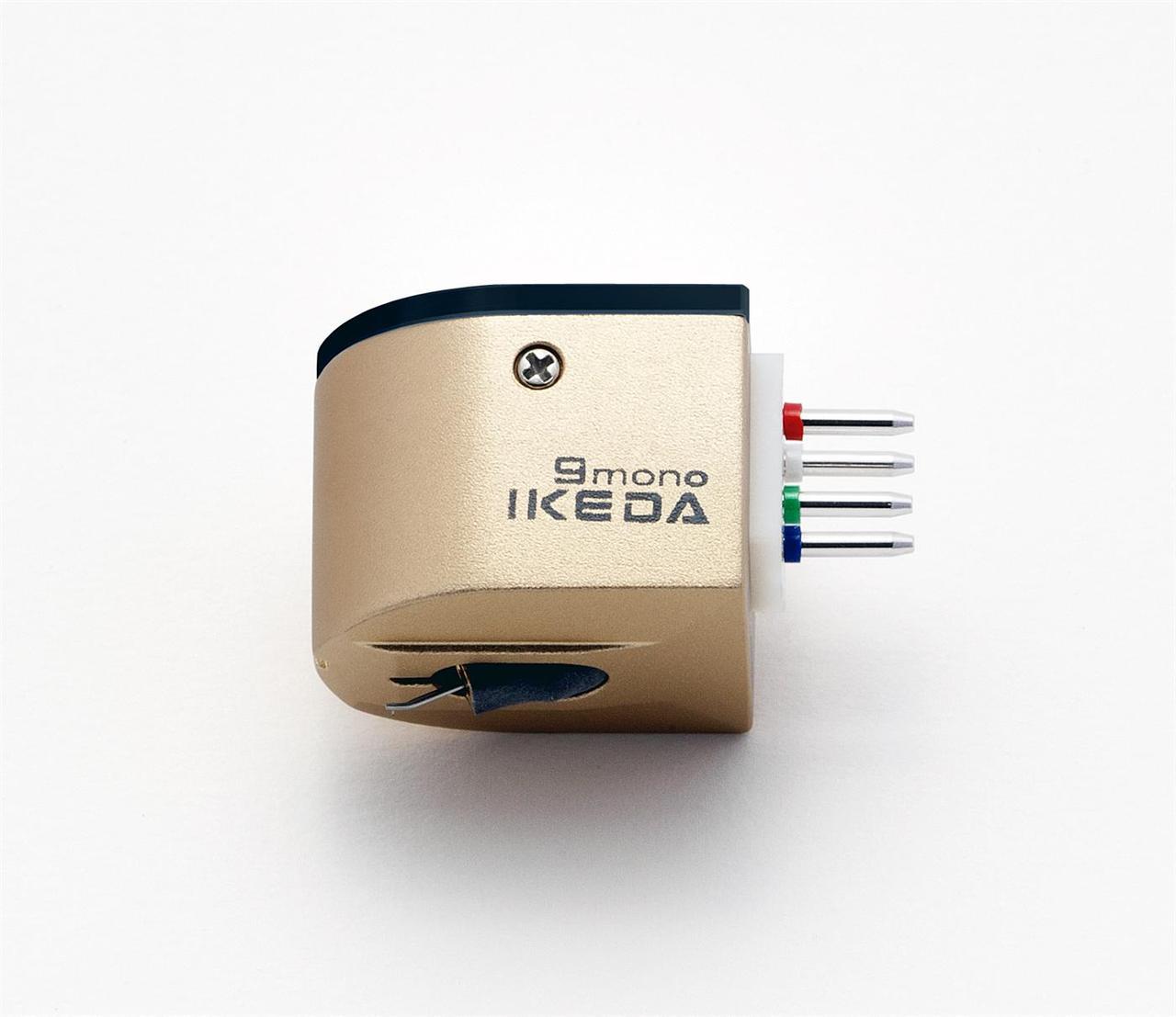

IKEDA 9 MONO CARTRIDGE: Output Voltage at 5 cm/sec: 0.3 mV – Stylus Force: 1.8 grams – Frequency Response: 10Hz > 45kHz – Stylus: Oval-shaped solid Diamond – Cantilever: Double layered duralumin pipe – Weight: 10 grams – Compliance @ 10 Hz: 12

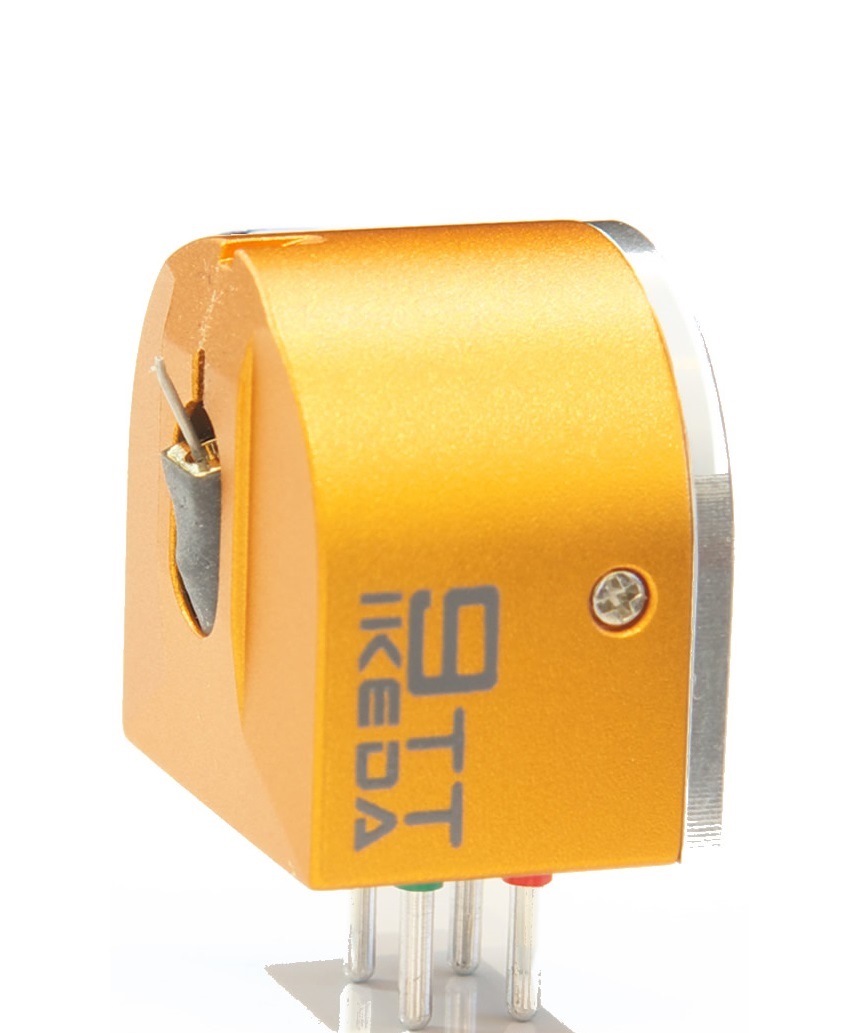

IKEDA 9 TT MC CARTRIDGE: Output Voltage at 5cm/sec: 0.3 mV – Stylus Force: 1.8 grams – Frequency Response: 10Hz > 45kHz – Stylus: Oval-shaped solid Diamond – Cantilever: Double layered duralumin pipe – Weight: 10 grams – Compliance @ 10 Hz: 12

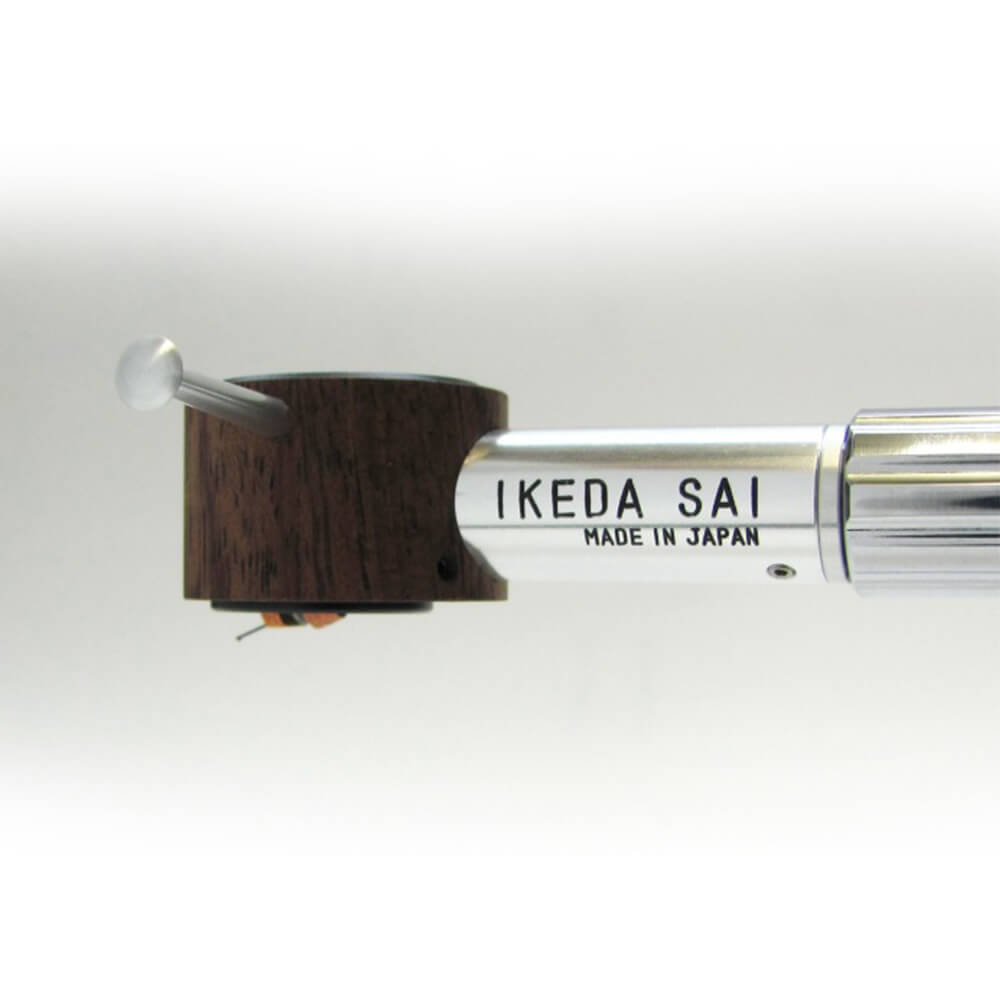

IKEDA SAI INTEGRATED HEADSHELL MC CARTRIDGE: Output Voltage at 5 cm/sec: 0.5 mV-Stylus Force: 2.0 Grams – Frequency Responce: 10 Hz > 45kHz – Stylus: Micro Ridge Solid Diamond – Cantilever: Boron – Weight: 30 Grams – Compliance @ 10 Hz: 12

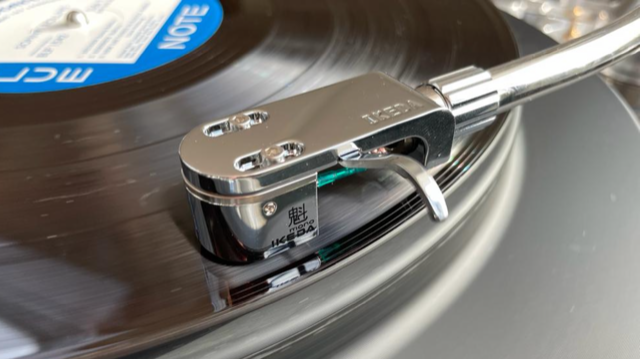

IKEDA KAI MC CARTRIDGE: Output Voltage at 5cm/sec: 0.3 mV – Stylus Force: 1.8 grams – Frequency Response: 10Hz > 45kHz – Stylus: Micro Ridge Solid Diamond – Cantilever: Boron – Weight: 11.8 grams – Compliance @ 10 Hz: 12

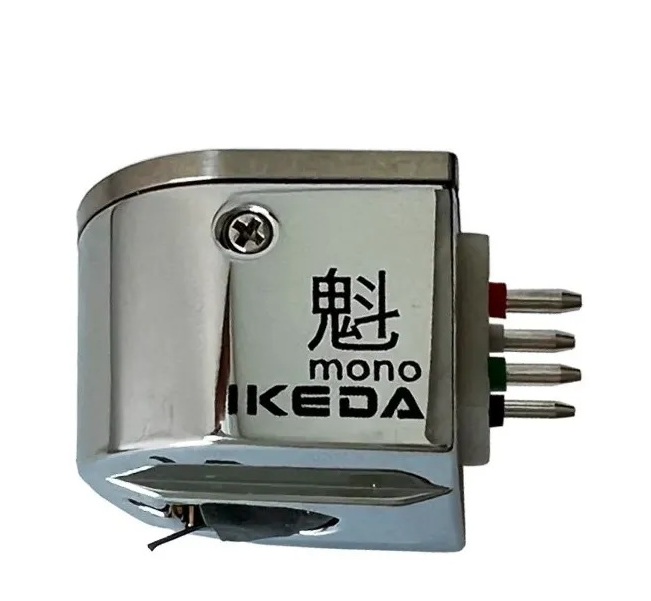

IKEDA KAI MC MONO CARTRIDGE: Output Voltage at 5 cm/sec: 0.33 mV – Stylus Force: 1.8 grams – Frequency Response: 10Hz > 45kHz – Stylus: Micro Ridge Solid Pure Diamond – Cantilever: Boron – Weight: 12,5 grams – Compliance @ 10 Hz: 12
TONEARMS:

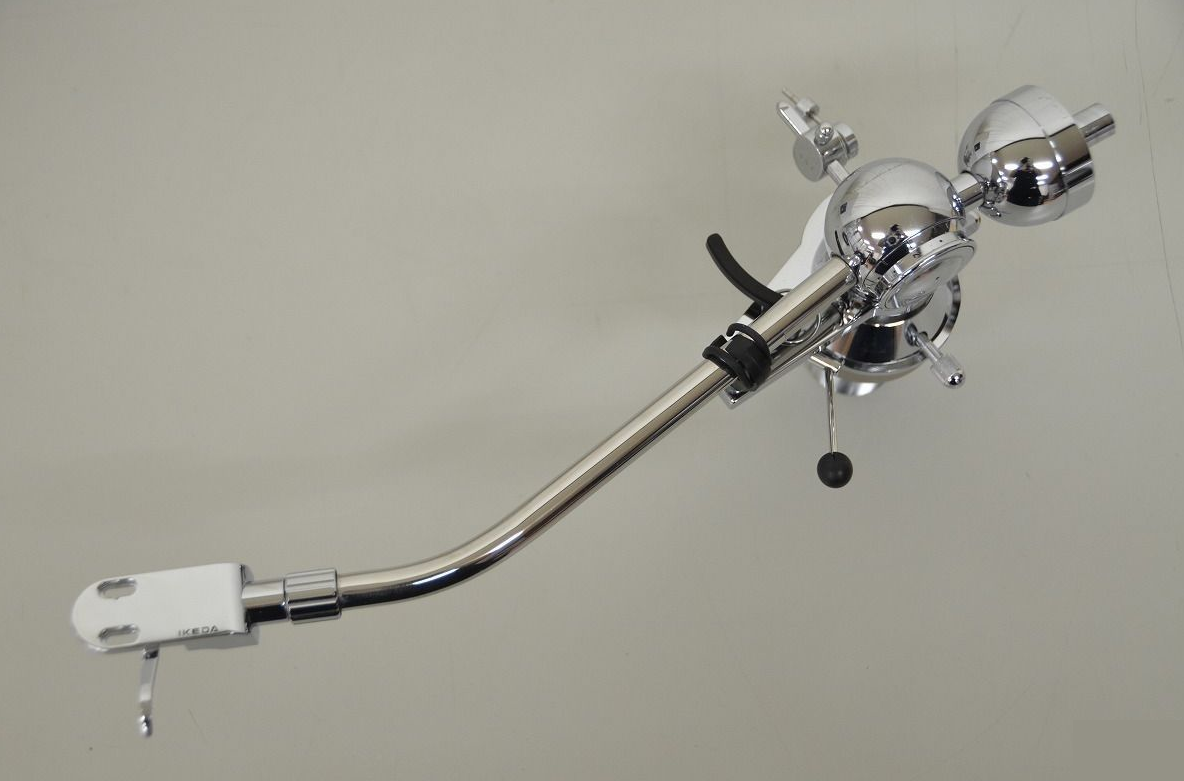

IKEDA IT 345-CR TONEARM: Type: Dynamic balance – Overall length: 326 mm – Effective length: 245 mm – Overhang: 15 mm – Cartridge/Headshell balance range: 6g – 38.5g – Headshell weight: 17.2g

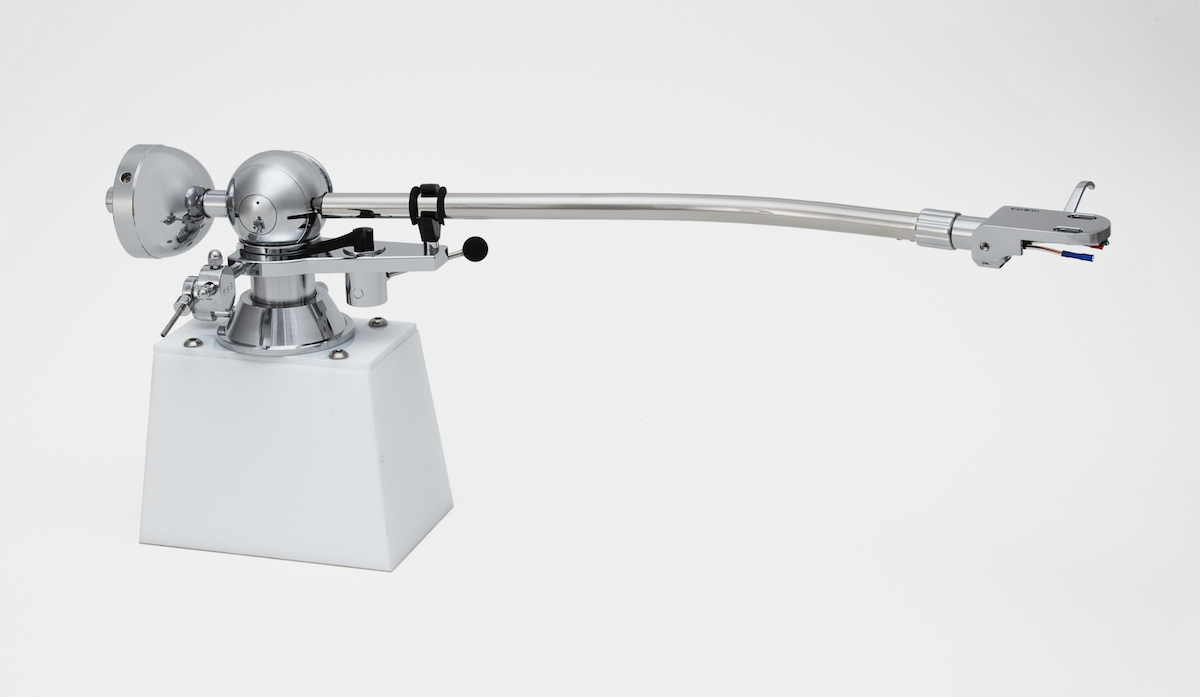

IKEDA IT 407-CR TONEARM: Type: Dynamic balance – Overall length: 388 mm – Effective length: 307 mm – Overhang: 12 mm – Cartridge/Headshell balance range: 6g – 38.5g – Headshell weight: 17.2g

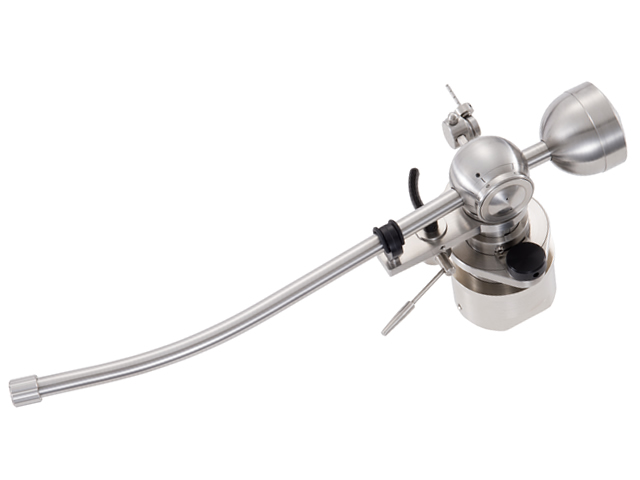

IKEDA IT 407-SS TONEARM: NEW 2020 PRODUCT!! Type: Dynamic balance – Overall length: 388 mm – Effective length: 307 mm – Overhang: 12 mm – Cartridge/Headshell balance range: 6g – 38.5g – Headshell weight: 17.2g IT-VTA 06 included.
STEP-UP TRANSFORMERS:

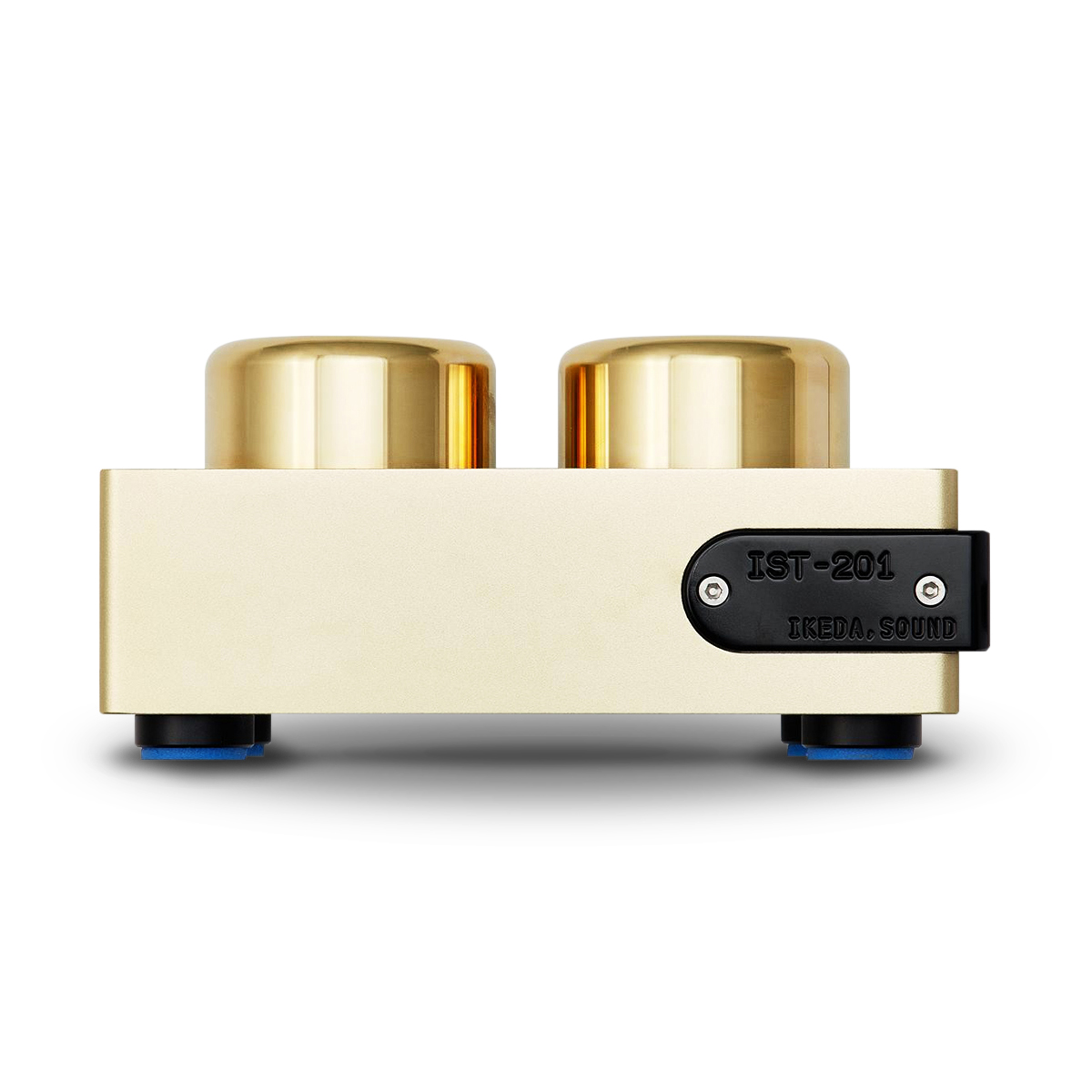

IKEDA IT 201 MC STEP UP: Low impedance (1-6 Ohm) MC step up, ratio 1:26, floating ground switch, Rhodium RCA connectors. Product of the Year/ Gold Sound Award 2019 AV Showrooms in the USA!
