Models van den Hul Analogue

Hieronder vindt u een overzicht van de van den Hul Analogue producten welke wij voeren. Ieder met de hand gebouwd van den Hul MC element kan voor u op specificatie worden aangepast, neem hier altijd van te voren contact over op.



Bristol_2015-vdH%20better

          CARTRIDGE REPAIR, RETIPPING AND MODIFICATION SERVICE:



Coil, wire and cantilever repairs

All cartridge brands possible.



Contact us for options and possibilities.

 ddt%202%20sS

VAN DEN HUL DDT-II SPECIAL MC CARTRIDGE:



Output: 0,65 mV

Boron cantilever, VDH-I stylus

Load: 200 Ohms, Weight: 8,2 grams

Compliance Dynamic – Static: 14 cu/dyne – 28 cu/dyne

 mc%2010%20sS

VAN DEN HUL MC-10 SPECIAL MC CARTRIDGE:



Output: 0,65 mV

Boron cantilever, VDH-I stylus

Load: 200 Ohms, Weight: 8,2 grams

Compliance Dynamic – Static: 14 cu/dyne – 28 cu/dyne

 mc%20one%20sS

VAN DEN HUL MC-ONE SPECIAL MC CARTRIDGE:



Output: 0,65 mV

Boron cantilever, VDH-I stylus

Load: 200 Ohms, Weight: 8,2 grams

Compliance Dynamic – Static: 14 cu/dyne – 28 cu/dyne

 mc%20two%20sS

Van den Hul MC-TWO SPECIAL MC cartridge:



Output: 2,25 mV

Boron cantilever, VDH-I stylus

Load: 47.000 Ohms, Weight: 8,2 grams

Compliance Dynamic – Static: 14 cu/dyne – 28 cu/dyne

frogS

VAN DEN HUL FROG – GOLD MC CARTRIDGE:



Output: 0,65 mV

Golden coils, Boron cantilever, VDH-IS stylus

Load: 500 Ohms, Weight: 8,2 grams

Compliance Dynamic – Static: 14 cu/dyne – 28 cu/dyne

white%20bS

 VAN DEN HUL ‘THE WHITE BEAUTY’ SPECIAL X MC CARTRIDGE:



Output: 0,65 mV

Silver coils, Boron cantilever, VDH-IS stylus

Load: >500 Ohms, Weight: 8,5 grams

Compliance Dynamic – Static: 18 cu/dyne – 35 cu/dyne

black%20bS

VAN DEN HUL ‘THE BLACK BEAUTY’ SPECIAL X MC CARTRIDGE:



Output: 0,65 mV

Gold coils, Boron cantilever, VDH-IS stylus

Load: >500 Ohms, Weight: 8,5 grams

Compliance Dynamic – Static: 18 cu/dyne – 35 cu/dyne

gh3%20glaS

 VAN DEN HUL ‘THE GRASSHOPPER’ III GLA MC CARTRIDGE:



Output: 0,60 mV

Silver coils, Boron cantilever, VDH-IS stylus

Load: >500 Ohms, Weight: 12,2 grams

Compliance Dynamic – Static: 18 cu/dyne – 35 cu/dyne

 canary%20S

 VAN DEN HUL ‘THE CANARY’ MC CARTRIDGE:



Output: 0,55 mV

Gold coils, Boron cantilever, VDH-I stylus

Load: >500 Ohms, Weight: 8,2 grams

Compliance Dynamic – Static: 18 cu/dyne – 35 cu/dyne

condorS

                         VAN DEN HUL ‘THE CONDOR’ XGHO MC CARTRIDGE:



Output: 0,45 mV

Gold coils, Boron cantilever, VDH-IS stylus

Load: >500 Ohms, Weight: 8,2 grams

Compliance Dynamic – Static: 18 cu/dyne – 35 cu/dyne

The%20Crimson%20wood

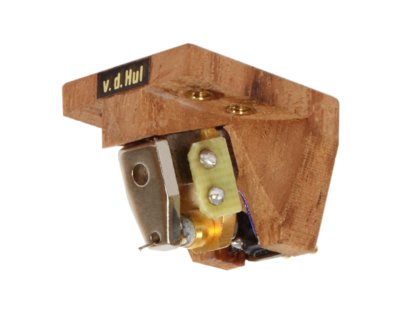

 VAN DEN HUL ‘THE CRIMSON’ XGW, XGW-SE or XGA MC CARTRIDGE:



Output: 0,65 mV

Gold coils, Boron cantilever, VDH-IS stylus

Load: >500 Ohms, Weight: 8,2 grams

Compliance Dynamic – Static: 18 cu/dyne – 35 cu/dyne

COLIBRI%20XGA%20AMBER

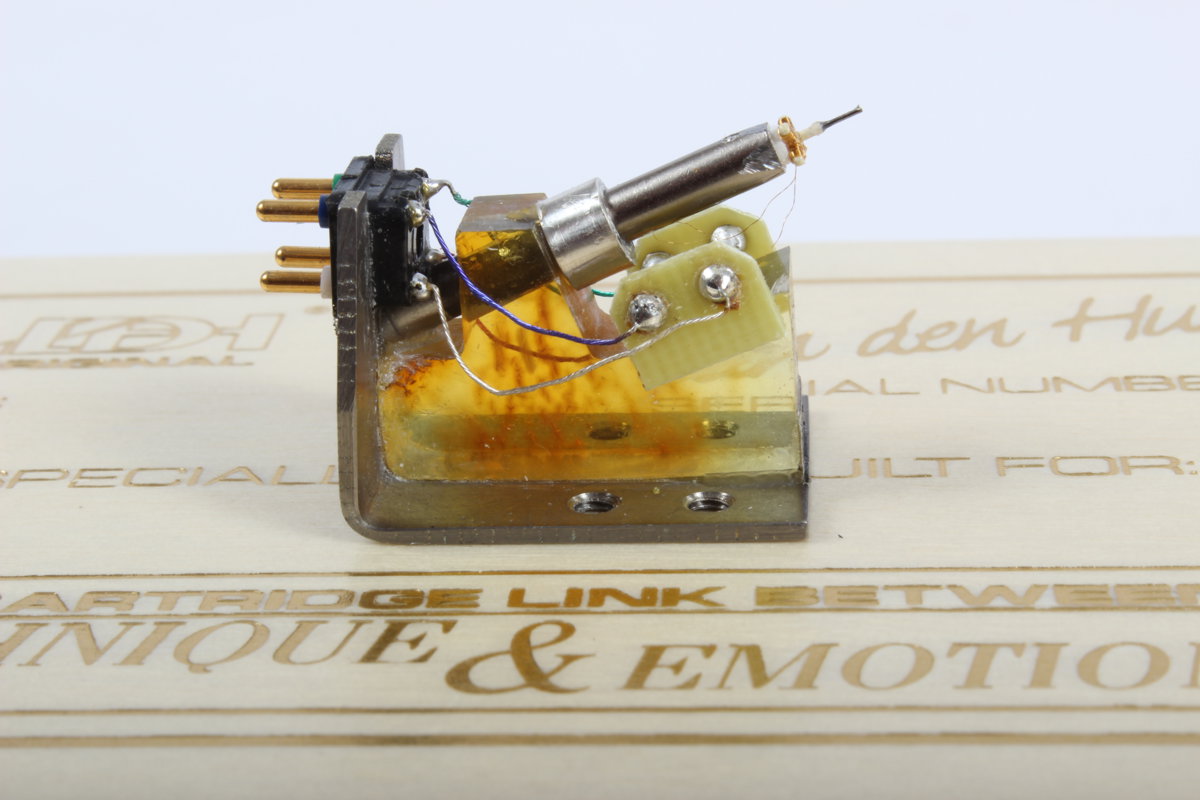

 VAN DEN HUL ‘THE COLIBRI’ XGP, XGW, XPP or XGA MC CARTRIDGE:



Output: 0,38 mV

Gold coils, Boron cantilever, VDH-IS stylus

Load: >500 Ohms (XPW/XPP versions >1000 Ohms), Weight: 6 grams

Compliance Dynamic – Static: 18 cu/dyne – 35 cu/dyne

 GRAIL%20front

 VAN DEN HUL ‘THE GRAIL’ MM/MC PHONOSTAGE:



Two inputs, one for MC cartridges, one for MM or MC high-output

Automatic adapting input stage for MC cartridges

RIAA – equalization with coils only

Amplification factor 33 dB up to 73 dB

Grail%20SB2015Blk%20web

VAN DEN HUL ‘THE GRAIL SB’ MM/MC PHONOSTAGE:



Balanced and top of the line version of ‘THE GRAIL’

MM/MC inputs, automatic adapting input for MC cartridges

RIAA – equalization with coils only

Amplification factor 33 dB up to 73 dB

Emerald%20black

 VAN DEN HUL ‘THE EMERALD’ LINE PRE-AMP:



Fully Balanced amplifier design

Completly remote controlled

Balanced to unbalanced and vice versa operation possible

No negative feedback, cascaded input- and MOSFET output stages

Excalibur

 VAN DEN HUL ‘THE EXCALIBUR’ MONO POWER-AMP:



Fully Balanced amplifier design

100 Watt @ 8 Ohm

Limited frequency range at the input at 380 KHz

Extra XLR output for Bi Amp option
